| Place of Origin: | China |
| نام تجاری: | XD |
| گواهی: | CE / ISO9001 |
| Model Number: | AN-50 |
| Minimum Order Quantity: | 1 set |
|---|---|
| قیمت: | negotiable |
| Packaging Details: | Standard heat treated wooden case |
| Delivery Time: | 7 week |
| شرایط پرداخت: | TT LC |
| Supply Ability: | 30 sets per month |
| Rotation direction:: | Right and left | Testing angle:: | 0.1~7200.0 |
|---|---|---|---|
| Package:: | Wooden case | Load:: | 50kgf/500N |
| Weight:: | 82kgs | Testing type:: | Torque and compressed force |
| برجسته کردن: | spring test machine,spring tester,spring tester |
||

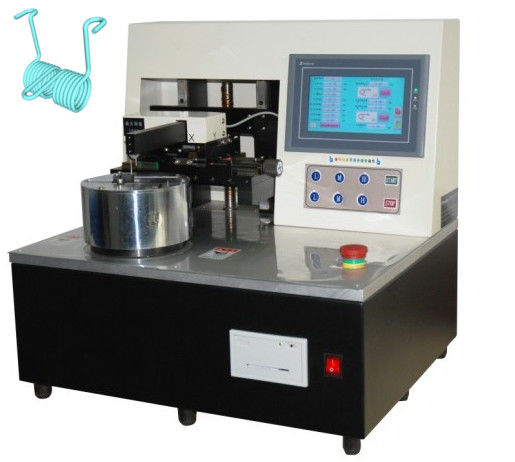

XD-AN-50 spring testing machine with accurate printed recording for torsion force
Technical parameters:
|
Model |
PG-AN-5 |
PG-AN-10 |
PG-AN-50 |
|
Max torque(Kgf-mm) |
300kgf-mm |
600kgf-mm |
2000kgf-mm |
|
Max load(Kgf/N) |
5kgf/50N |
10kgf/100N |
50kgf/500N |
|
Min torque value (gf-mm) |
0.1gf-mm |
1gf-mm |
|
|
Min load value (N) |
0.001N |
0.01N |
|
|
Unit |
N , gf , kgf |
||
|
Length unit |
mm,cm,m |
||
|
Testing speed |
10～1800 deg/min |
||
|
Manual spinning position |
10deg,1deg,0.1deg |
||
|
Applicated diameter |
ф50 |
||
|
Y axis range |
±25mm |
||
|
X axis range |
60mm |
||
|
Testing angle |
0.1～7200.0 |
||
|
Spinning direction |
L&R |
||
|
Stage movement value(up&down) |
80mm |
||
|
Type |
right outside, right middle, left outside, left middle |
||
|
Size |
W580mm×D480mm×H560mm |
||
|
Weight |
82KG |
||
|
Features |
automatic testing free length over loading protection able to connect with tiny printer |
||
Main Applications:
The manual spring torsion testing machine is for testing and analyzing the angle, torque, torsional force and spring rate of the springs.
Main Technical Specifications:
1. Max Testing Torque: 50Nmm 100Nmm 500Nmm 1000Nmm 5000Nmm
2. Measuring Stroke :2%-100%
3. Accuracy of Testing Force:1%
4. Accuracy of Displacement Measurement:1%
