| Place of Origin: | China |
| نام تجاری: | XD |
| گواهی: | CE / ISO9001 |
| Model Number: | 230 |
| Minimum Order Quantity: | 1 set |
|---|---|
| قیمت: | Negotiable |
| Packaging Details: | standard heat treated wooden case |
| Delivery Time: | 15 days |
| شرایط پرداخت: | TT LC |
| Supply Ability: | 20 sets per month |
| Axis number:: | 2 axis | Servo brand:: | Sanyo denki |
|---|---|---|---|
| Optional tools:: | Spring length gauge | Package:: | Wooden case |
| Gross weight:: | 1050kgs | Machine painting:: | Blue |
| برجسته: | spring machinery,spring former,spring former |
||
1.00 - 3.00mm Two - Three Axis Spring Machinery High Precision CNC

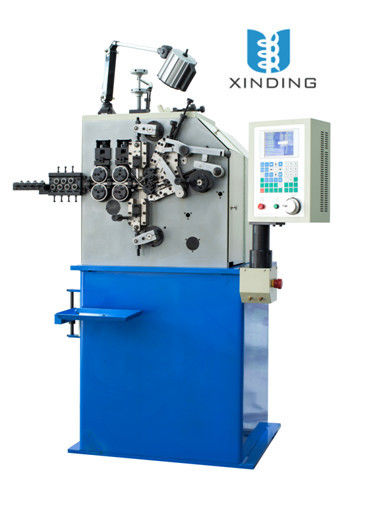

1.00-3.00mm Computerised XD-230 two axis spring coiling machine
Technical Parameter:
| Model: |
XD-230 |
|
Wire diameter: |
φ1.0～3.0mm |
|
Axes: |
2-3 axes |
|
Maximum Outside Diameter: |
50 mm |
|
Maximum Feeding Length: |
unlimited |
|
Maximum Manufacture Speed: |
250pcs/min |
|
Feed Speed |
1350m/min |
|
Memory Number: |
1000PCS |
|
Wire Feed Servo Motor: |
3.8 KW |
|
Cam Servo Motor: |
2.7 KW |
|
Power AC: |
3-Phase 220V |
|
Dimensions (L*D*H): |
1200X1200X1700MM |
|
Wooden Case Dimensions |
1300x1300x1850mm |
|
Machine Weight: |
1000Kg |
|
Gross Weights |
1050Kg |
Details:
1. Computer can automatically detect the temperature of the motor and slow down the running speed
to protect the motor from overheating,
2. Compute can automatically decelerate according to the timing when the probe should be used,
3. Prodution speed can be increased or decreased at any ting running the machine,
4. Not only does have the convenient mechanization,but also the high speed and accuracy resulted
from servo motion system.
Our advantages:
1. The factory has about 15 years experience in this field, and the Founder Mr Bai witnessed the Spring Industry development in China.
2. A complete production line from Design, Own Processing centre for spareparts & worktable, Importing Japan Sanyo and Yaskawa motors, Importing TaiWan Brand controlling system, Finishing operation, Inspection centre, Testing team and Professional vacuum packing with Fumigated wooden case.
3. Main market: Europe (UK, Italy, Sweden, Romania, Poland, Estonia, Russia,Turkey)
Africa (South Africa, Egypt,Tunisia),
Asia (Korea, India, Malaysia, Vietnam, Iran, Thailand),
South America (Brazil, Argentina, Colombia, Cuba, Mexico)
4. We have established customer oriented quality management system, strengthen lasting innovation and enhance after-sale services.
Our principle is "Quality first, Customer paramount, Keep improving"
Applicated products:
