| Place of Origin: | China |
| نام تجاری: | XD |
| گواهی: | CE / ISO9001 |
| Model Number: | CNC-20 |
| Minimum Order Quantity: | 1 set |
|---|---|
| قیمت: | Negotiable |
| Packaging Details: | Standard heat treated wooden case |
| Delivery Time: | 20 days |
| شرایط پرداخت: | TT LC |
| Supply Ability: | 30 sets per month |
| Axis number:: | 3-4 | Optional tools:: | Spinner |
|---|---|---|---|
| Servo motor:: | Sanyo denki | Machine paintings:: | Blue |
| Package:: | Wooden case | Gross weight:: | 950kgs |
| برجسته: | spring winding machine,cnc spring former,cnc spring former |
||

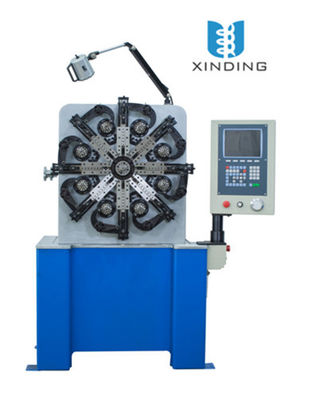

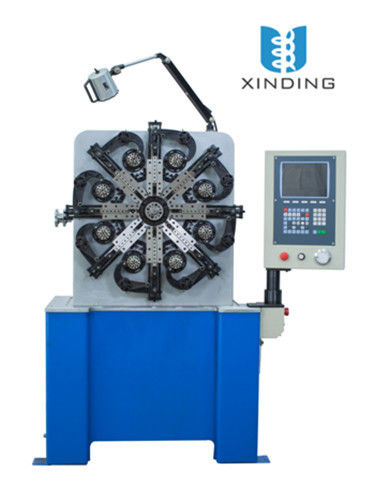

XD-CNC20 universal spring forming machine
Technical Parameter:
|
Model: |
XD-CNC20 |
|
Wire diameter: |
φ0.3～2.3 mm |
|
Axes: |
3 axes |
|
Maximum Outside Diameter: |
40mm |
|
Maximum Feeding Length: |
unlimited |
|
Maximum Manufacture Speed: |
100pcs/min |
|
Feed Speed |
200m/min |
|
Memory Number: |
1000PCS |
|
Wire Feed Servo Motor: |
2.7 KW |
|
Cam Servo Motor: |
2.7 KW |
|
Quin Servo Motor |
0.75 KW |
|
Power AC: |
220V 3P 50/60Hz |
|
Dimensions (L*D*H): |
1400X550X1600MM |
|
Wooden Case Dimensions |
1600x600x1700mm |
|
Machine Weight: |
900Kg |
|
Gross Weights |
950Kg |
Details:
1. CNC20 coiling spring machine consists of cam axis, wire feeding axis, rotation core and
rolling axis. The mechanical part has eight sets of sliding blocks. The winch and cam rotation
have three mechanical part has eight sets of sliding blocks.The winch and cam rotation have three mechanical action
types: extruding,punching and molding.
2. The spring machine rotation core system is installed on the axis. The axis can rotate leftwards
and rightwards. The rolling axis is installed on the sliding house. The cam drives it rotate 360°,
also can control direction action or designated moves back and forth.
3. Optional accessories: Cutting tools, rolling axis, safety door.
Tooling presentation:
