| Place of Origin: | China |
| نام تجاری: | XD |
| گواهی: | CE / ISO9001 |
| Model Number: | 60 |
| Minimum Order Quantity: | 1 set |
|---|---|
| قیمت: | negotiable |
| Packaging Details: | Standard heat treated wooden cases |
| Delivery Time: | 7 days |
| شرایط پرداخت: | TT LC |
| Supply Ability: | 50 sets per month |
| Application:: | auxiliary tool for wire feeding | Motor:: | 500w |
|---|---|---|---|
| Speed of table:: | 150rpm | Diameter of table:: | 60mm |
| Package:: | Wooden case | Power ac:: | 220v 50hz |
| برجسته کردن: | wire feeding machine,wire feeding equipment,wire feeding equipment |
||

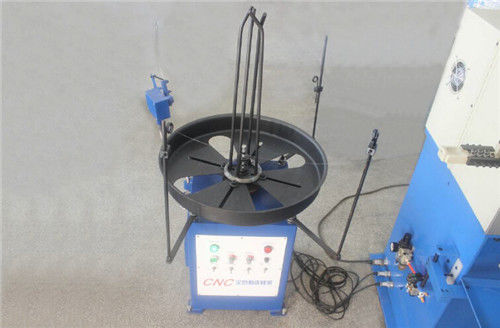

Forward / Reversal Rotation Wire Payoff High Stability 60mm Table Diameter
Technical specifications:
|
Model |
XD-60 |
|
Max Capacity of load |
50KG |
|
Max Speed Of Table |
150rpm |
|
Diameter Of Table |
60mm |
|
Motor |
500W |
|
Dimensions |
500 * 500 * 650 mm |
|
Weight |
50KG |
Product Description:
Automatic spring wire decoiler is applying with the CNC spring forming machine. It is stable and durable. It will
stop automatically when the feeding is abnormal. The wire feed rate can be automatically adjusted during working,
synchronizing the speed with the spring forming machine. It will stop automatically in case of faults like kinking of wire.
Features Of spring wire decoiler
1, Wrap lines warning function
2, Short lines warning function
3, To move the feeding
4, Automatic feeding
5, Manually even feeding
